Base Series Workbench
All purpose workbench series designed to functionally serve your basic workspace needs.
Base Series Workbench
All purpose workbench series designed to functionally serve your basic workspace needs.

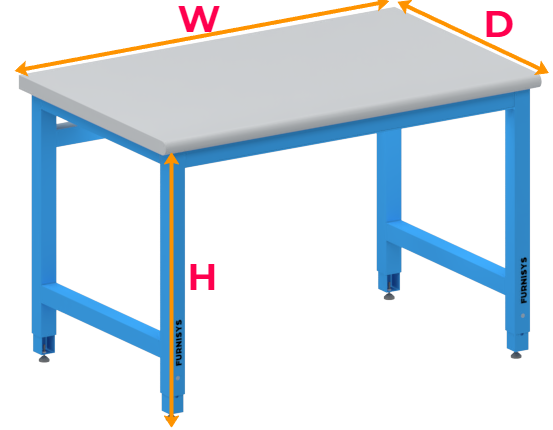

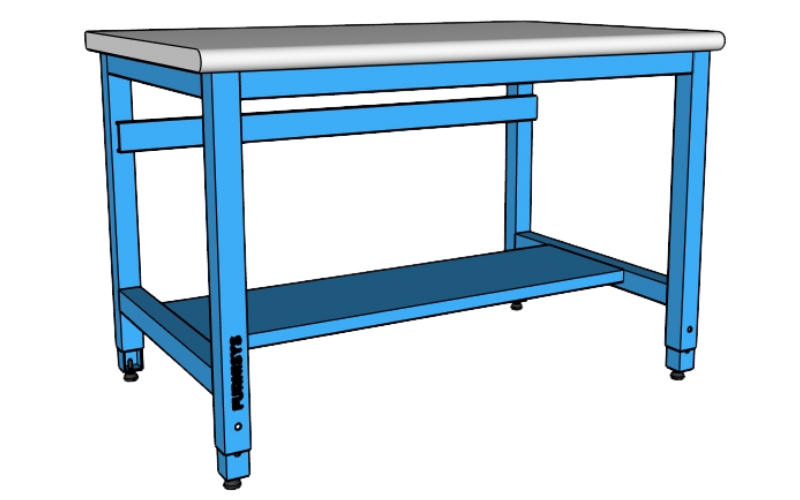

Base Workbench Worksurface Options
Base workbenches are available in twelve standard sizes and two heights. Simply choose the base size, height and worksurface that best suits your needs, and add appropriate accessories.
Base Workbench
- Workbench height is 30” (76 cm) or 36” (91 cm)
- Heavy-duty 2” x 2” tubular legs include levelling glides
- Load capacity for bench is 1,000 lbs. (454 kg) evenly distributed
Worksurface Material Legend
- PLW = Postform Laminated Particle Board
- PELW = Postform Electrostatic Laminated Particle Board
- GW = GI + Plyboard
- SSW = SS + Plyboard
- HPL = High Pressure Laminate
Base All Purpose Workbench

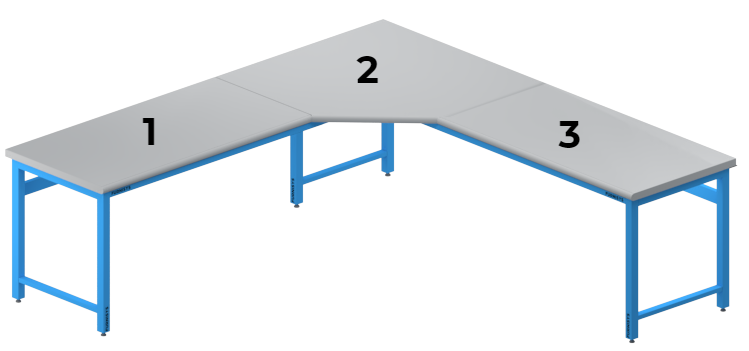

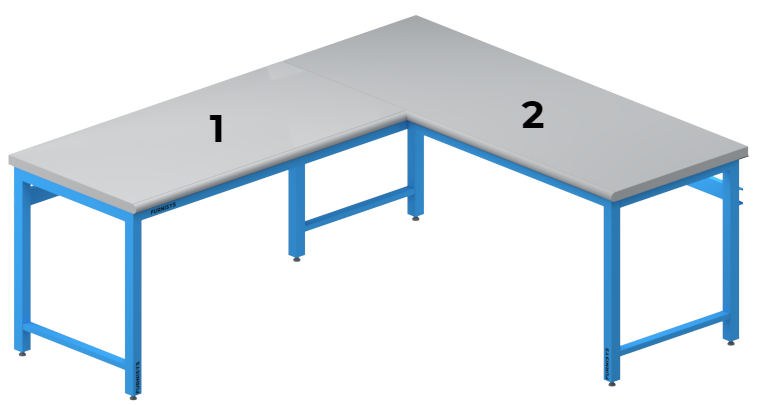

“L” Configuration
Available in multiple sizes and with 2 piece top or 3 piece top with diagonal corner piece. Two piece tops are all square edge. Three piece tops in laminate and plyboard have front radius edge. Both may be assembled with left hand or right hand orientation. This configuration eliminates the knee space interference of the bench leg that occurs when two independent benches are aligned in the “L” configuration.
Base Workbench Leg Extenders
Leg Extenders
- Allow nominal height adjustment of 6” on 2” increments
- Extender for 30” high workbench allows extended heights of 32”, 34” or 36” overall height
- Extender for 36” high workbench allows extended heights of 38”, 40” or 42” overall height.
Base Workbench Accessories

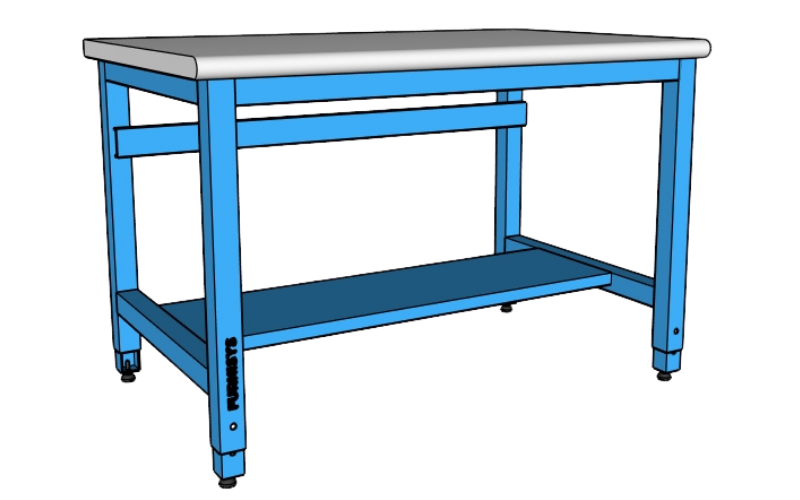

Under Shelf
- For extra storage space under your benches
- 12” and 18” under shelves mount to leg braces

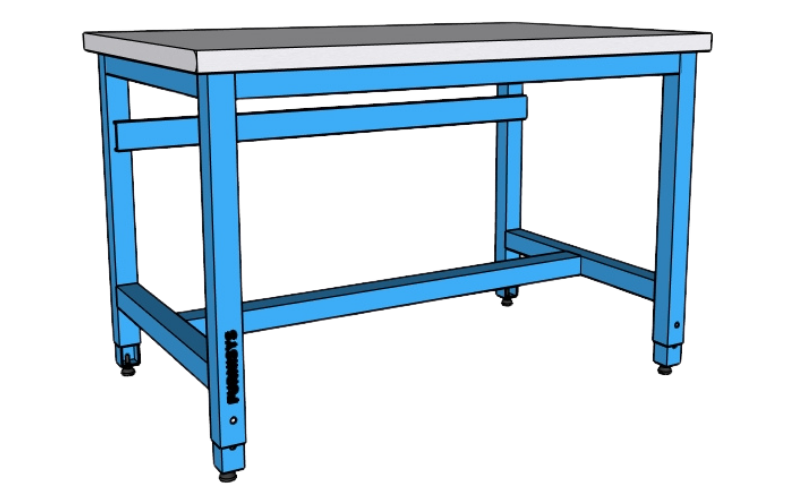

Fixed Heavy Gauge Footrest
- Channel steel footrest fastens to leg braces

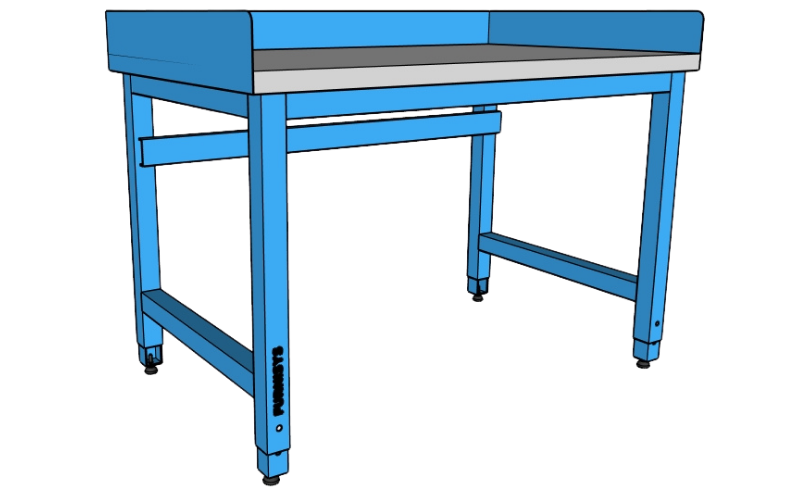

Back And End Stops
- Steel stops fasten to worksurface to provide back and end stops
- Stops extend approx. 4” above workbench top
- End stops are 30” deep and have rounded front corners
- Back stop can also be attached to riser shelf
Standard Casters
- Set of casters used to add mobility
- Swivel stem casters are 5″X 1 1⁄4 ” and replace glides which come with stationary legs
- Increases overall nominal height by 6″
- Includes 2 swivel and 2 locking swivel casters

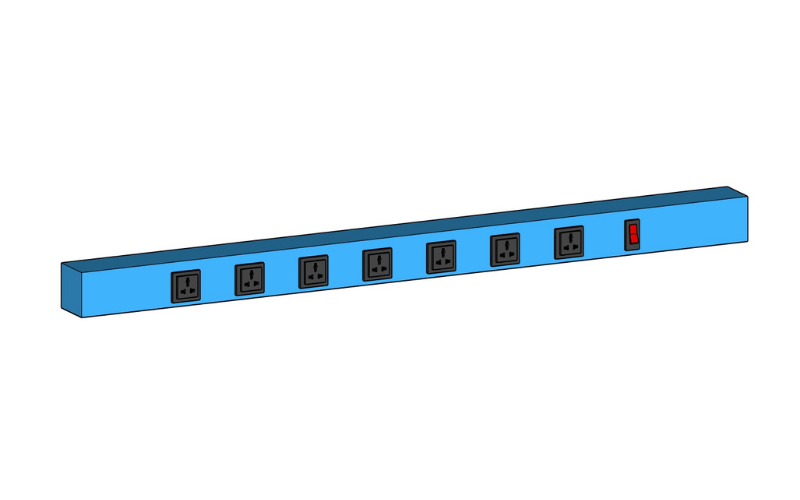

Outlet Strip a
- Surface mounts to top or bottom of worksurface
- Includes 8 outlets of 6/16 Amp (7 socket+1 MCB) , on/off switch, power cord and circuit breaker
Base Workbench Above Worksurface Accessories

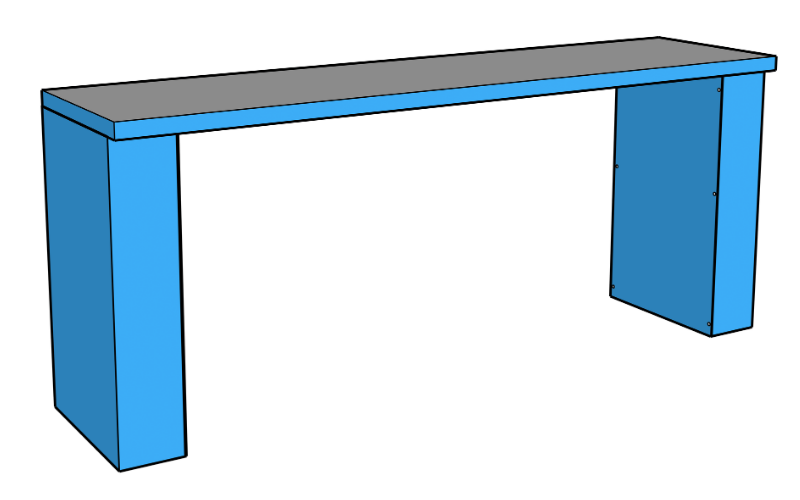

Riser Shelf With Box Supports
- 14” (36 cm) deep shelves are finished in either standard laminate or static dissipative laminate to match specified worksurface
- Steel box supports are 19” (48 cm) high and 11” (28 cm) deep

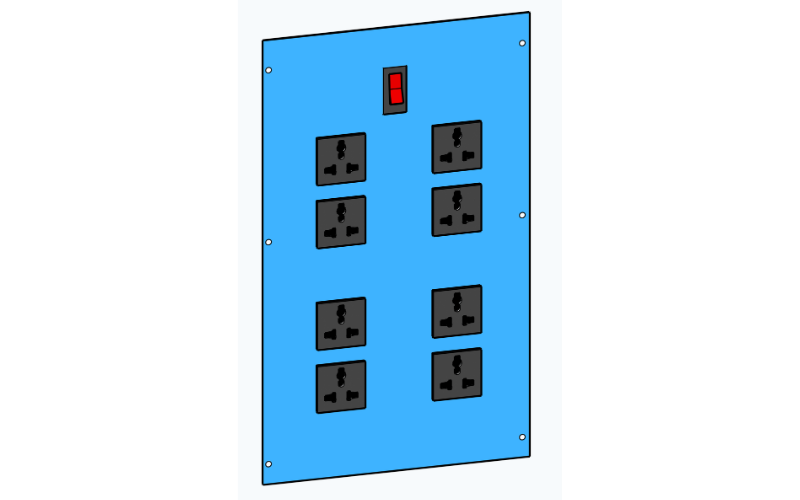

Electrical Panel Insert For Box Support
- The panel insert includes I5 Amp circuit breaker, 6 sockets and power cord
- Electrical panels can be used on one or both shelf supports and can be purchased with riser shelf or added later.

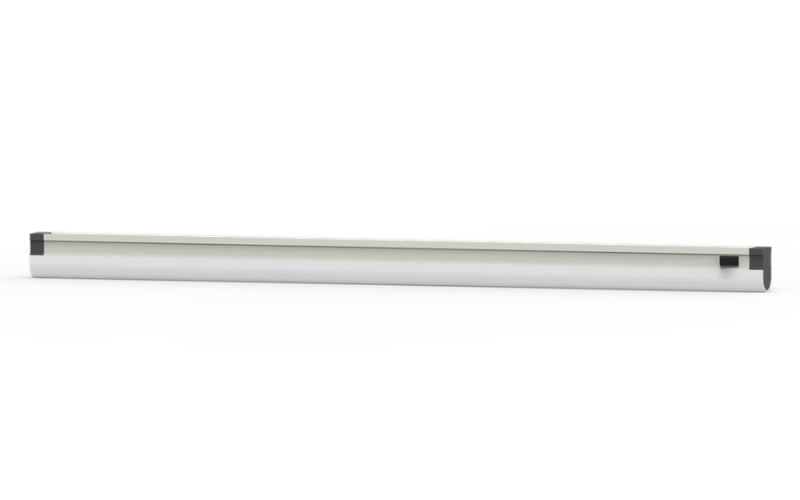

LED Undershelf Light
- LED Undershelf light to be mounted under the shelf or cabinet.
- Magnetic mounting
- Color Temp 4000K- 6000K
Rubber mat
- 4-6mm thick rubber mat
- Standard colors is black

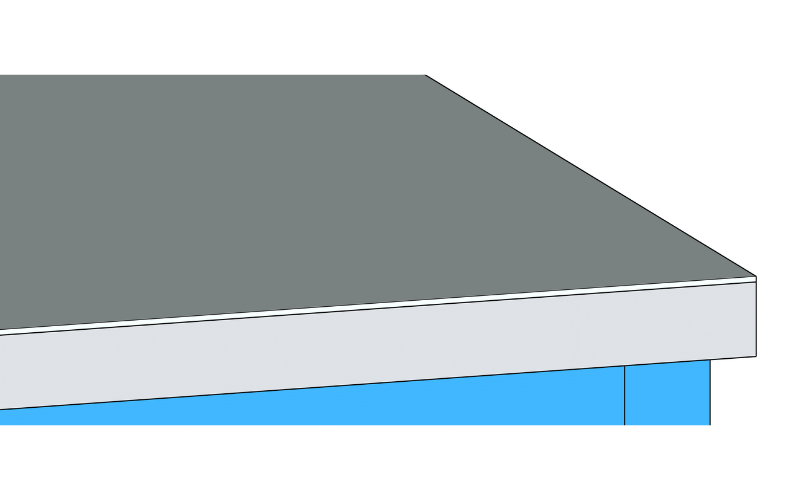

ESD mat
- Surface mounts to top or bottom of worksurface
- Includes 8 outlets of 6/16 Amp (7 socket+1 MCB) , on/off switch, power cord and circuit breaker
ESD Accessories

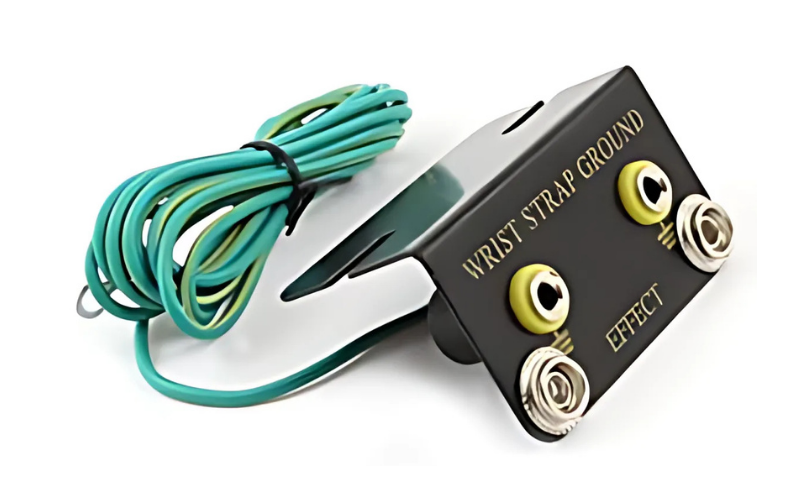

Wrist Strap and Ground Block
- Mounts to underside of worksurface.
- Dual receptacles for 2 wrist straps. Includes
- ESD Grounding cords, ESD buttons,
- Grounding plug & 3 way connectors

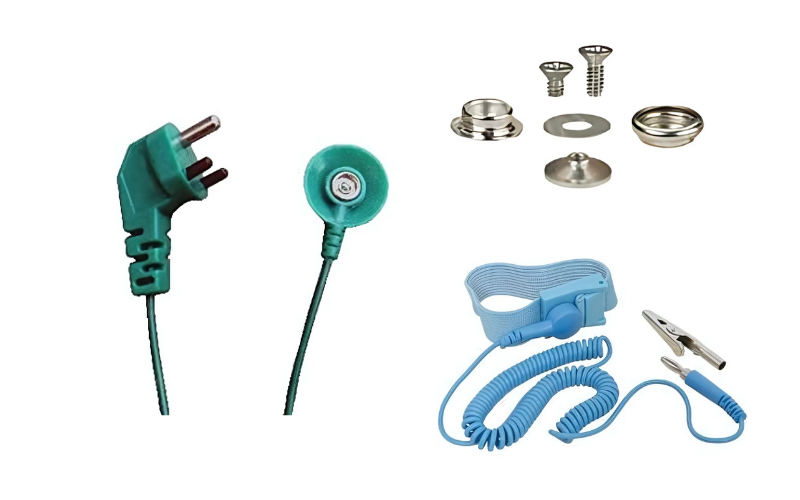

Ground Kits
- Kit is supplied with all electrostatic dissipative
- worksurfaces or shelves. Includes
- attaching hardware.
HANGING DRAWERS
- Steel drawer mounts under worksurface, and can slide to any horizontal position
- Includes telescopic slides and integrated handles .
- Each unit comes with a lock and 2 keys
- Provided with option of (To be put in
place of # )
1. IL-Individual lock or
2. NL-no lock - 16 1⁄2 ” wide x 19 1⁄4 ” deep
HANGING DRAWERS
- 21 1⁄2 ” wide x 18 1⁄2 ” deep
- Lock not available
- Telescopic slides and full length integrated handle
Base Series Workbench
Base Series Industrial Workbench
All purpose workbench series designed to functionally serve your basic workspace needs.
Looking for configured products?

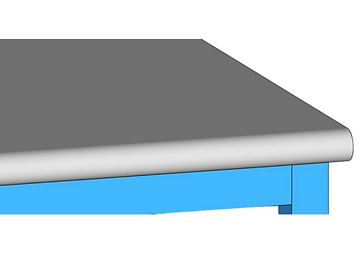

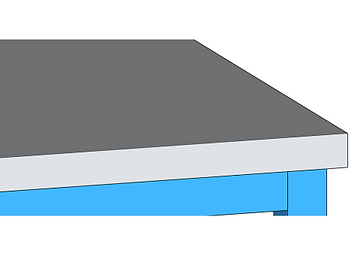

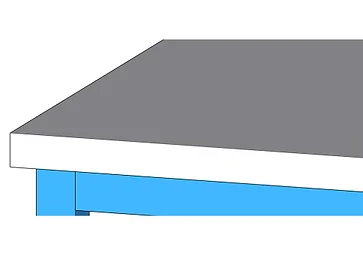

Variety of Multi-Functional Worksurfaces
Feature
Multiple worktop options – PLW (Postform Laminate Particle Board), PELW (Post-formed Electrostatic Laminate Particle Board), Wood + SS Cladded, Wood + GI Cladded, and HPL (High-Pressure Laminate)
Advantage
Offers application-specific worktops in multiple sizes and finishes, providing enhanced resistance to wear, chemicals, and impact for reliable performance in industrial environments.
Benefit
Ensures the worksurface is always appropriate to the task - be it mechanical, electronic, cleanroom, or general-purpose assembly. Enhances durability and cleanliness in line with operational needs.
Sturdy Table Frame with Industrial Build
Feature
Heavy-duty 2” x 2” MS tubular legs with leveling glides
Advantage
High-load capacity and excellent structural stability during rigorous operations
Benefit
Increases longevity and reliability during demanding applications such as component assembly, mechanical testing, or packing.
Modular Configuration Options (Linear / L-Shape)
Feature
Modular layouts available in two geometric configurations
Advantage
Supports flexible layout planning to suit various workflows and space constraints
Benefit
Optimizes footprint usage in production or lab environments and facilitates smoother task transitions between zones, enhancing productivity.
Wide Choice of Worksurface-Mounted and Under-Table Accessories
Feature
Compatible with Link Uprights, Rubber mat, Back & End Stops as well as below worktop accessories include undershelves,outlet strips & footrest.
Advantage
Enables tool accessibility, part organization, and ergonomic efficiency
Benefit
Improves task efficiency, reduces movement waste, and supports multi-operational use in assembly, testing, or repair environments.
Integrated Leg Extender for Height Adjustment
Feature
Adjustable height through leg extender
Advantage
Supports multiple operator postures (sitting/standing) and various operational dynamics
Benefit
Enhances comfort, reduces fatigue and risk of injury, and promotes productivity through ergonomic configuration.
Compact and Configurable Hanging Drawer Units
Feature
Under-worktop hanging drawers available in 2-, 3-, or 4-drawer combinations, or in drawer + shelf format
Advantage
Maximizes underutilized space and keeps frequently used items within reach
Benefit
Promotes lean practices by organizing tools/materials efficiently, reducing search time, and maintaining a clutter-free workspace.
Durable Powder-Coated Finish in Multiple Color Options
Feature
Scratch-resistant, corrosion-protective powder coating with color variants
Advantage
Maintains structural integrity and surface finish over time
Benefit
Improves product lifespan, resists discoloration, and enhances visual appeal—helping maintain a clean, professional work environment.
Riser Shelf with Provision for Electrical and Lighting Integration
Feature
Riser shelf with box supports provides elevated storage above the worktop and includes designated space for integrating electrical panel inserts and task lighting
Advantage
Combines storage, power access, and illumination in a single modular unit
Benefit
Maximizes vertical workspace utility while reducing clutter on the primary worktop. Supports streamlined power distribution and task lighting - ideal for operations involving electronics, diagnostics, or component assembly.
Pre- Configurable
Custom
Base Series Industrial Workbenches – Functional Simplicity, Industrial Strength
Furnisys’ Base Series Industrial Workbench is a purpose-built solution engineered for performance across workshops, labs, warehouses, and production floors. Designed as a foundational platform for daily industrial tasks, this modular workbench system combines flexibility, durability, and user comfort—all essential for modern manufacturing environments.
Whether you need a workshop workbench for repairs, a warehouse workbench for material handling, or a factory workbench for daily production, the Base Series adapts with ease. It serves as an ideal production workbench and scales effortlessly into roles like a packing station workbench, electronic assembly workbench, or even an inspection station workbench. Its minimalist yet sturdy construction makes it a favorite for teams seeking reliability without complexity.
Each unit is crafted from a robust steel workbench frame, offering long-term durability under heavy loads. The heavy-duty workbench structure ensures vibration resistance and operational stability—whether it’s being used as a technician workbench in electronics or a chemical-resistant lab workbench in scientific environments. For labs or controlled spaces, the Base Series can also be upgraded to function as a cleanroom certified workbench or biological safety workbench, thanks to compatible worktops and accessories.
Ergonomics remain a core priority in the Base Series design. With height-adjustable workbench features enabled through leg extenders, users can maintain proper posture and reduce strain during long shifts. These ergonomic adjustable workbenches support a range of operators and are especially useful in multi-shift or team-based environments where one setup must accommodate multiple users.
Adaptability is where the Base Series truly excels. From linear layouts to L-configurations, this flexible configuration workbench is perfect for tight layouts or expanding workstations. It can transform into a reconfigurable workbench system as operations grow or shift—making it a smart investment for companies seeking scalability.
Workspaces that require specialized setups will benefit from the Base Series’ wide range of accessories. Combine it with integrated drawers, tool holders, power strips, shelving, or monitor arms to create a customizable industrial workbench tailored for specific workflows. It easily serves as an inventory control workbench, inventory work table, or logistics workbench, streamlining processes and improving workplace organization.
For electronics manufacturing or sensitive assembly environments, the Base Series can be adapted into an ESD protected workbench, helping to prevent static discharge that can damage components. In labs or pharma environments, users can upgrade to a chemical-resistant lab workbench or cleanroom workbench for compliance and safety.
Whether it’s a maintenance workbench in a utility area, a material sorting workbench in a logistics hub, or an assembly line workbench supporting lean production methods, the Base Series provides unmatched versatility. Its modularity and strength make it an essential part of any industrial or technical workspace.
Designed for Diverse Applications
- The Base Series is trusted across industries and departments that include:
- Workshops: As a go-to technician workbench for repair and general tasks.
- Electronics Labs: For use as an electronic assembly workbench with ESD protection.
- Pharmaceutical & Cleanroom Zones: Supporting workflows as a cleanroom certified workbench or biological safety workbench.
- Production & Assembly Areas: Acting as a factory workbench or assembly line workbench for scalable operations.
- Packing & Shipping Areas: Serving as a packing station workbench and logistics workbench.
- Inventory & Sorting Stations: Functioning as an inventory control workbench or material sorting workbench.
Why Furnisys Base Series?
We understand the importance of efficiency, safety, and adaptability in today’s industrial setups. That’s why our durable industrial workbench systems are designed not just for daily use—but for evolution. The Base Series is more than a table; it’s a reliable platform that supports your workflow, your people, and your productivity.
If you’re seeking a modular workbench system that’s ergonomic, customizable, and ready for growth, the Base Series from Furnisys is your answer. From ESD-safe electronics stations to chemical-resistant lab benches, it’s built to meet diverse needs with precision and simplicity.
Product Overview
Choice of Sizes
Available in two heights, six widths, and two depths to suit a wide range of workspace requirements and layouts.
Durable Worksurface Options
Select from plastic laminate, static dissipative laminate, or cladded worktops in stainless steel and galvanized iron to match your specific application.
Leg Extenders
Adjustable height in 2″ increments (up to 6″ total) ensures ergonomic comfort for various users and tasks.
Link System
Maximize the vertical space above the work surface with the Link Uprighter system—our integrated solution for mounting accessories like shelves, pegboards, lighting, and tool rails.
Workstation Accessories
Configure your bench with additional accessories such as bottom shelves, back and end stops and electrical provisions to enhance productivity.
Heavy-Duty Construction
Built for demanding work environments, the Base Series supports up to 454 kg of evenly distributed load.
Choice of Sizes
Available in two heights, six widths, and two depths to suit a wide range of workspace requirements and layouts.
Durable Worksurface Options
Select from plastic laminate, static dissipative laminate, or cladded worktops in stainless steel and galvanized iron to match your specific application.
Leg Extenders
Adjustable height in 2″ increments (up to 6″ total) ensures ergonomic comfort for various users and tasks.
Link System
Maximize the vertical space above the work surface with the Link Uprighter system—our integrated solution for mounting accessories like shelves, pegboards, lighting, and tool rails.
Workstation Accessories
Configure your bench with additional accessories such as bottom shelves, back and end stops and electrical provisions to enhance productivity.
Heavy-Duty Construction
Built for demanding work environments, the Base Series supports up to 454 kg of evenly distributed load.
